PFNA Nail Instrument Set
- Complete set of instruments for PFNA nail insertion
- Includes various guide sleeves and pins for precise placement
- Features a quick coupling handle for easy assembly
- Comes with wrenches and screws for secure fixation
- Handy instrument box for convenient storage and organization
- SKU
- 1200-07
- Brand
- Orthopromed
- Warehouse
- US · UK · NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview

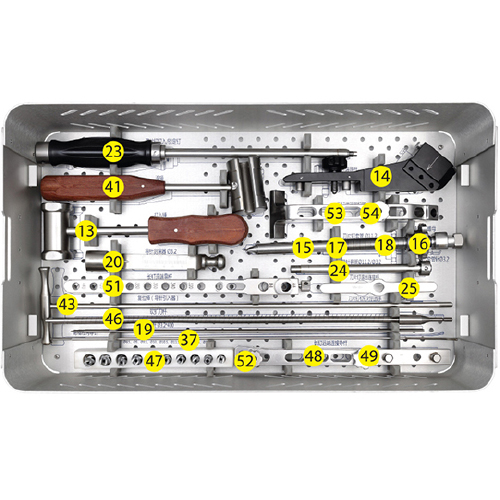

| 1 | 1200-0701 | Template for Development | 1 |
| 2 | 1200-0702 | Guide Sleeve φ16.5 | 1 |
| 3 | 1200-0703 | Guide Pin Sleeve φ16.5/φ3.2 | 1 |
| 4 | 1200-0704 | Handle with Quick Coupling | 1 |
| 5 | 1200-0705 | Proximal Hollow Drill Bit φ16.5/φ3.2 | 1 |
| 6 | 1200-0706 | Hollow Open Tapper | 1 |
| 7 | 1200-0707 | Protected Platefor Soft Tissue | 1 |
| 8 | 1200-0708 | Handle | 1 |
| 9 | 1200-0709 | Connecting Bolt M10*1.5/SW8 | 1 |
| 10 | 1200-0710 | Universal Wrench of Connecting Bolt SW8 | 1 |
| 11 | 1200-0711 | Main Pin Impactor | 1 |
| 12 | 1200-0712 | Open Wrench SW11 | 1 |
| 13 | 1200-0713 | Impactor Hammer | 1 |
| 14 | 1200-0714 | Proximal Guide Bar | 1 |
| 15 | 1200-0715 | Guide Sleeve φ11.2 | 1 |
| 16 | 1200-0716 | Support/Compression Nut | 1 |
| 17 | 1200-0717 | Guide Sleeve for Pins φ11.2/φ3.2 | 1 |
| 18 | 1200-0718 | Pins φ3.2 | 1 |
| 19 | 1200-0719 | Thread Pin φ3.2*400mm | 1 |
| 20 | 1200-0720 | Depth Gauge φ3.2 | 1 |
| 21 | 1200-0721 | Proximal Hollow Position Stopper φ10.6/φ3.2 | 1 |
| 22 | 1200-0722 | Position Stopper | 1 |
| 23 | 1200-0723 | Screwdriver M7*1 L/SW4.5/φ3.2 | 1 |
| 24 | 1200-0724 | Connector | 1 |
| 25 | 1200-0725 | Wrench | 1 |
| 26 | 1200-0726 | Distal Guide Bar 180 | 1 |
| 27 | 1200-0727 | Distal Guide Bar 240 | 1 |
| 28 | 1200-0728 | Distal 90 Degree Guide Bar 180/240 | 1 |
| 29 | 1200-0729 | Distal Locking Pin Sleeve φ11/φ8.2 | 1 |
| 30 | 1200-0730 | Soft Tissue Seperating Device φ8.2/φ4.3 | 1 |
| 31 | 1200-0731 | Sleeve Pin φ4.3 | 1 |
| 32 | 1200-0732 | Drill Bit φ4.3 | 1 |
| 33 | 1200-0733 | Position Stopper φ4.3/SW3 | 1 |
| 34 | 1200-0734 | Small Wrench SW3/φ4 | 1 |
| 35 | 1200-0735 | Distal Locking Holes Depth Gauge | 1 |
| 36 | 1200-0736 | Distal Locking Screw Wrench SW4 | 1 |
| 37 | 1200-0737 | Tail Hook Guide Pin φ2.8 | 1 |
| 38 | 1200-0738 | Tail Hollow Screwdriver φ2.8/SW6.5/SW11 | 1 |
| 39 | 1200-0739 | Tail Hollow Sleeve/Extension Rod SW11 | 1 |
| 40 | 1200-0740 | Blade Nail Device M7*1 L/SW4.5 | 1 |
| 41 | 1200-0741 | Sliding Hanmer | 1 |
| 42 | 1200-0742 | Nail Remove Rod M10*1.5 | 1 |
| 43 | 1200-0743 | Reduction Rod (Guide Pin Leading Device) | 1 |
| 44 | 1200-0744 | Ball Head Guide Pin φ2.5/φ4 | 1 |
| 45 | 1200-0745 | Guide Pin Control Device | 1 |
| 46 | 1200-0746 | Soft Expansion Tool Rod φ2.5/φ8 | 1 |
| 47 | 1200-0747 | Soft Expansion Metallutgy φ8-φ13 | 1 |
| 48 | 1200-0748 | Long Nail Distal Connection Guide Pin | 1 |
| 49 | 1200-0749 | Long Nail Distal Connection Guide Bar Lock Wheels M8*1/SW5 | 1 |
| 50 | 1200-0750 | Locking Wheel Spanner | 1 |
| 51 | 1200-0751 | Long Nail Distal Guide Bar | 1 |
| 52 | 1200-0752 | Long Nail Distal Guide Pin Locking Wheels M8*1/SW5 | 1 |
| 53 | 1200-0753 | Long Nail Distal Positioning Frame | 1 |
| 54 | 1200-0754 | Long Nail Distal Positioning Frame Lock Wheels M6/SW5 | 1 |
| 55 | 1200-0755 | Positioning Pipe φ10/φ8.1 | 1 |
| 56 | 1200-0756 | Positioning Stem Bushing Needle φ8.1 | 1 |
| 57 | 1200-0757 | Positioning Stem Drilling Sheath φ8.1/φ5.2 | 1 |
| 58 | 1200-0758 | Positioning Drill Rod φ5.2 | 1 |
| 59 | 1200-0759 | Positioning Stem Flats Drill φ5.2 | 1 |
| 60 | 1200-0760 | Positioning Rod φ8.1/φ5.2 | 1 |
| 61 | 1200-0761 | Positioning Card | 1 |
| 62 | 1200-0762 | Instrument Box | 1 |
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
