Easy to reprocess
The cannulated bore flushes out cleanly and the collet has remained reliable across our inspection intervals. Robust construction and good sealing.
Hugo Beckett, BMETVerified buyerFeb 1, 2025
Orthopromed

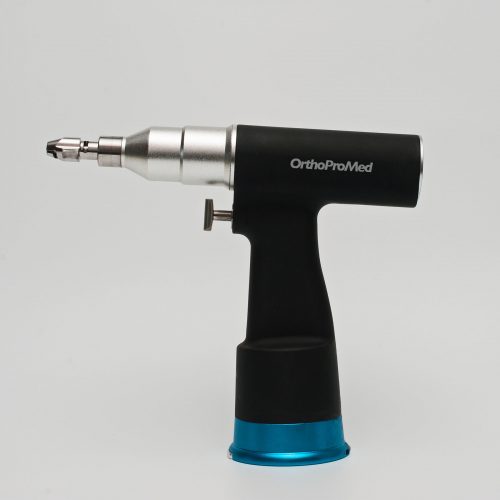

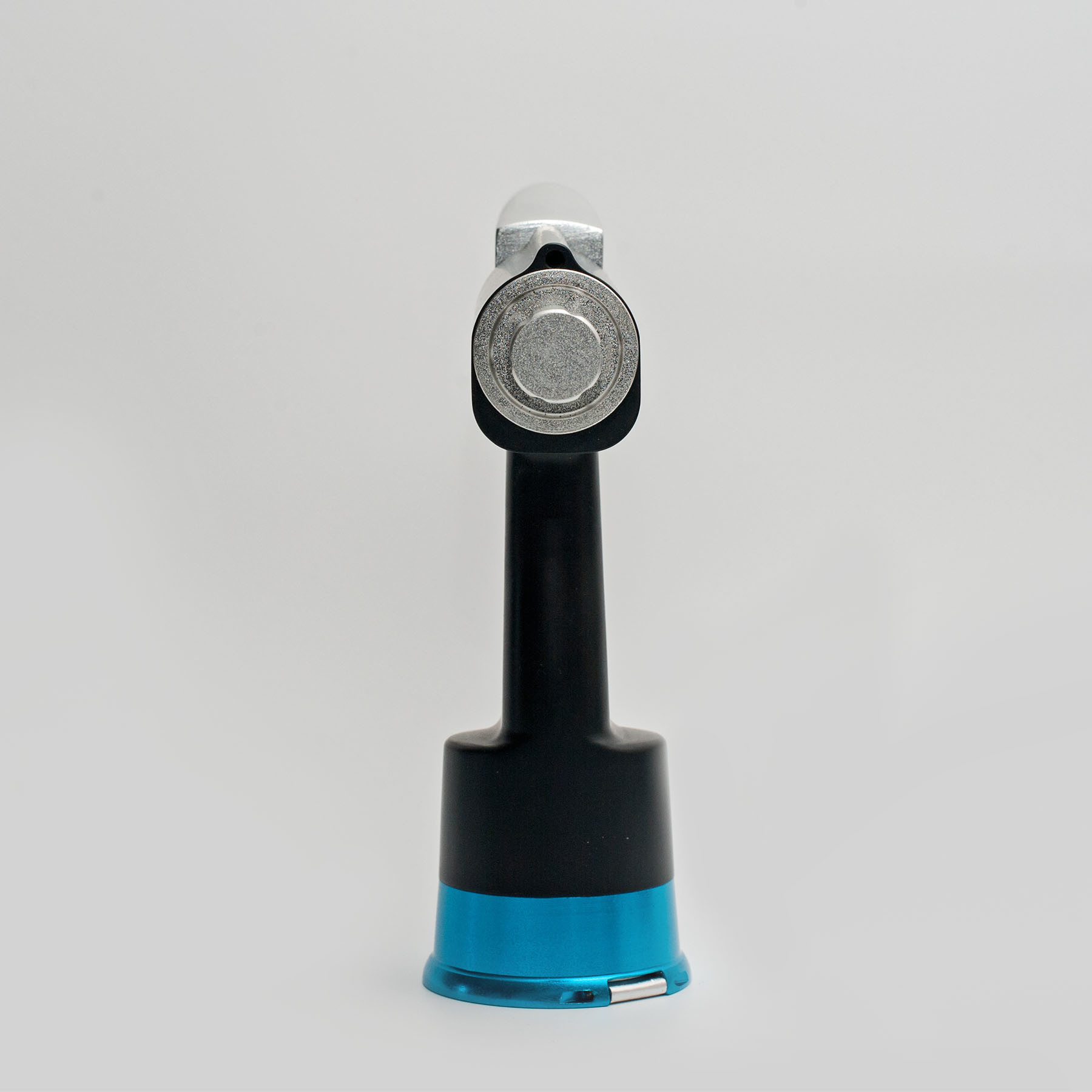

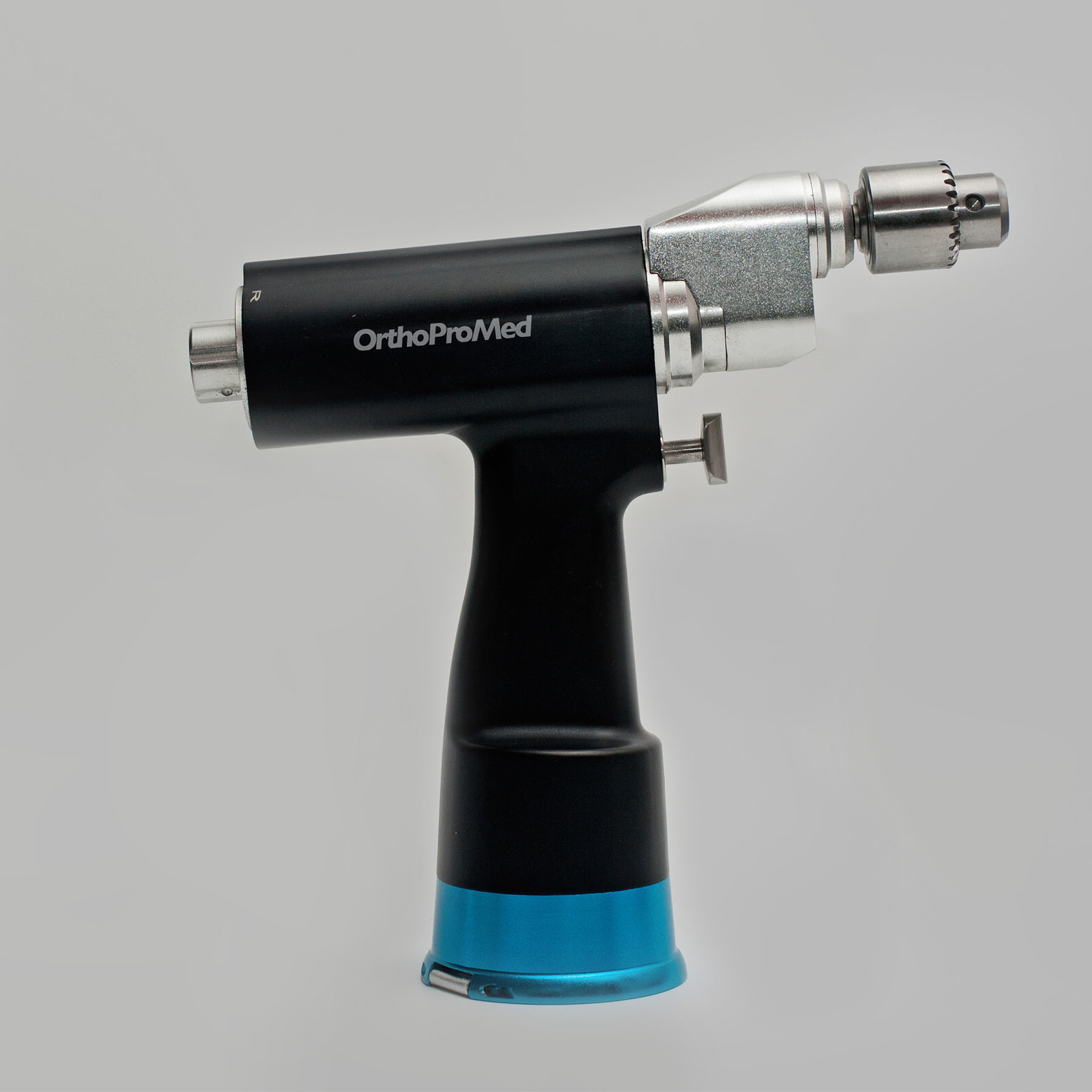

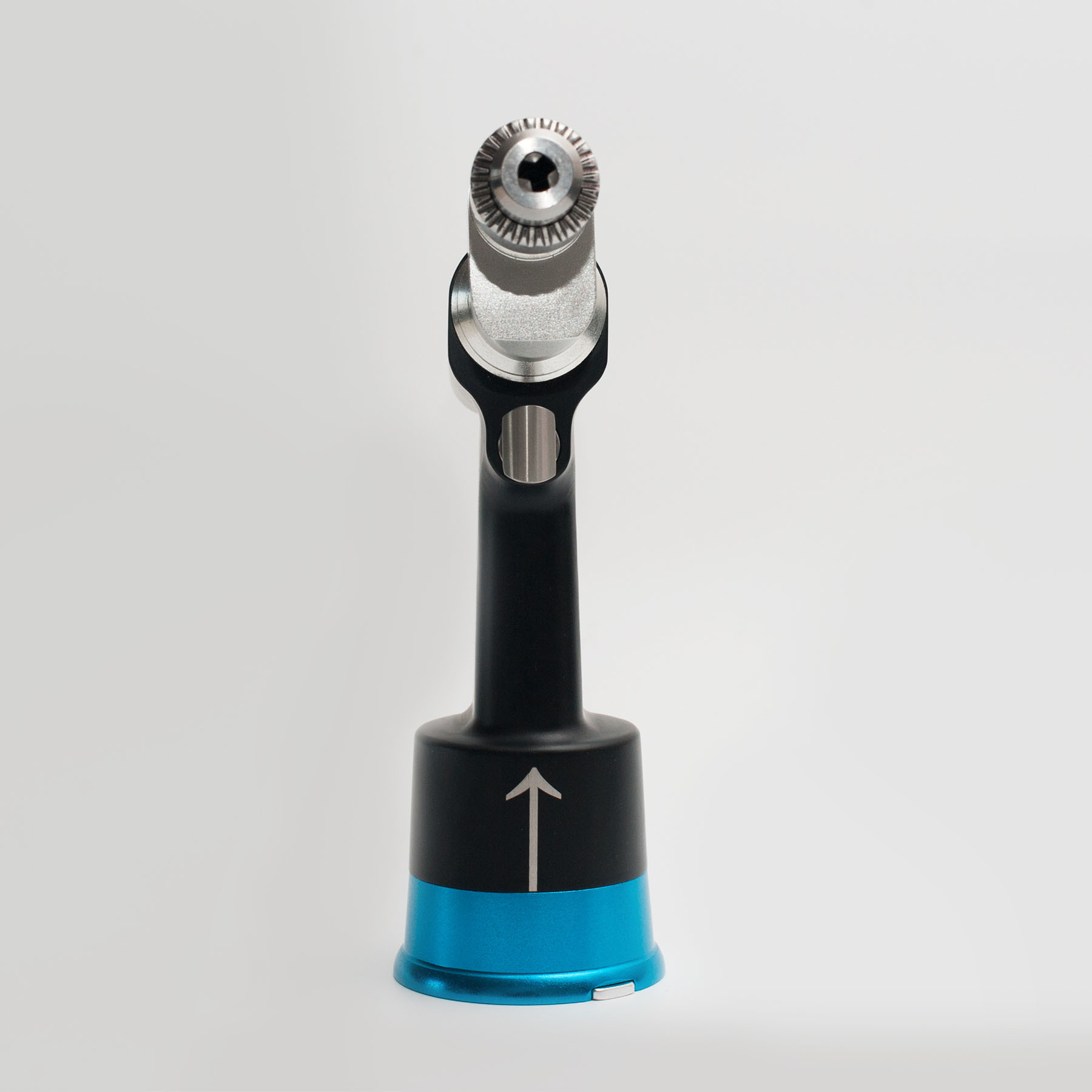

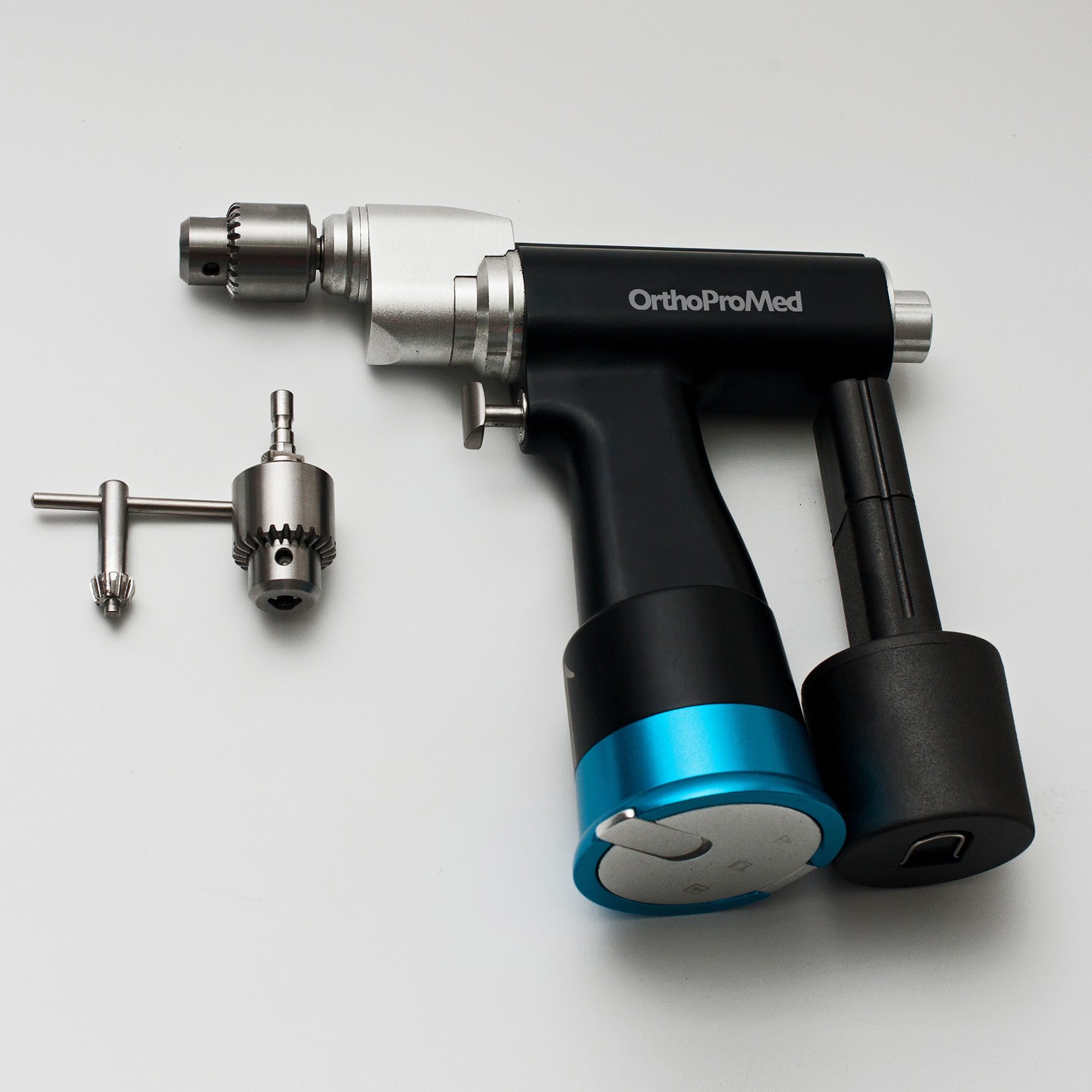

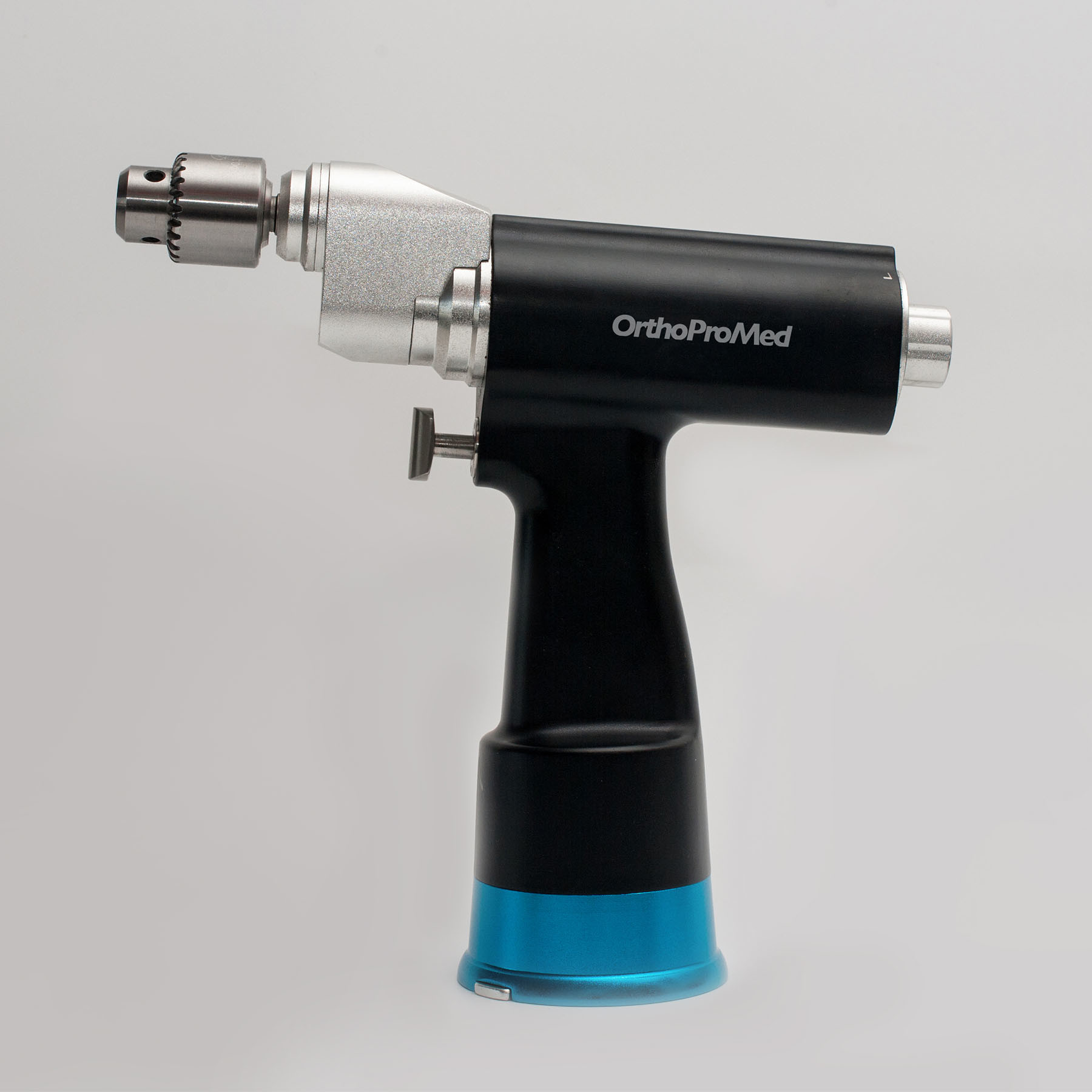

Medical Electric Cannulated Bone Drill 605
4.3(3 reviews)- Suitable for all brands of intramedullary nail and kirschner wire operations
- Center hole diameter of 4.0mm for precise concentricity
- Input voltage range of 110V-240V/50Hz
- Output power of ≤120W
- Battery capacity of 1800mA/h
- Rated speed of 0-1000rpm (customizable)
- Sterilization method: HTHP at 134-138°C
- SKU
- OPM-605
- Brand
- Orthopromed
- Warehouse
- US · UK · NL
- Availability
- In stock
- ✓ Warranty included
- ✓ Worldwide shipping
Clinical overview
Product overview
Suitable for all kinds of brands of intramedullary nail and the kirschner wire operation. Center hole diameter is 4.0mm. Because of precise concentricity it improves the accurancy of operation and make the operation more perfect.
|
Diameter of drill chuck
|
0-8mm
|
|
Input voltage
|
110V-240V/50Hz
|
|
Output power
|
≤120W
|
|
Battery capacity
|
1800mA/h
|
|
Rated speed
|
0-1000rpm(customize avaliable)
|
|
Rating torque
|
6.3Nm
|
|
Charging voltage
|
14.4V
|
|
Sterilization
|
HTHP
|
|
Sterilizing temperature
|
134-138°C
|
|
Noise
|
≤60db
|
Available on request
Configuration, paperwork & clinical fit
The full spec + documentation pack for this device ships ahead of purchase on request. A sales engineer responds within one business day.
Configuration sheet
Specifications, accessories & clinical fit
Sizes and dimensions, material and finish, compatible instruments and screw references, what ships in the set, lead time and warranty — all in one specification sheet, sent within one business day.
Documents & downloads
Regulatory paperwork & manuals
This device's IFU, CE Declaration of Conformity, ISO 13485 certificate and (where applicable) FDA 510(k) clearance ship with the order. Reach out below for the pack ahead of purchase.
Get in touch
Need configuration help, certificates, or volume pricing?
Our clinical sales team will scope quantities, voltage, accessories and regulatory paperwork — usually within one business day.
Customer reviews
4.3· 3 reviewsPowerful and dependable
Strong performer for percutaneous work with responsive trigger control near vital structures. A little weightier than a cordless unit but the rigidity gives me confidence.
Dr. Marta Sokolova, MD, FAAOSJul 23, 2024
Smooth over-the-wire drilling
The 605 tracks over a guidewire with a concentric cannulation, so my pilot holes stay on the planned trajectory for cannulated screw fixation. Ample torque for a femoral neck and no wire binding.
Dr. Reuben Hartmann, MD, FRCS (Orth)Jun 21, 2024
